Auto Canopy

Auto Smart Sunroof Dimming Film


Automotive Intelligent Sunroof Dimming Film is an innovative product that combines modern material science and electronic technology to enhance driving comfort, safety and energy efficiency.

261425358329.jpg261425355605.jpg261425359865.jpg261425357704.jpg261425362968.jpg261425362968.jpg261425365025.jpg261425377091.jpg

1. Light regulation
Dynamic light adjustment: Through Electrochromic (EC), Polymer Dispersed Liquid Crystal (PDLC) or Suspended Particle (SPD) technologies, users can manually or automatically adjust the film's light transmittance (usually ranging from 5% to 90%) to achieve switching from transparent to matte or dark colors, adapting to different lighting environments.
Anti-glare: Automatically attenuates strong light (e.g. direct sunlight), avoiding the driver's vision from being disturbed and enhancing driving safety.
2. Thermal insulation and energy saving
Infrared/Ultraviolet ray blocking: it can block more than 80% of infrared rays (to reduce the temperature inside the car) and 99% of ultraviolet rays (to protect the interior and skin).
Reduced air-conditioning load: Reduces heat radiation inside the car in summer and retains some heat in winter, indirectly reducing energy consumption and extending the EV range.
3. Privacy protection

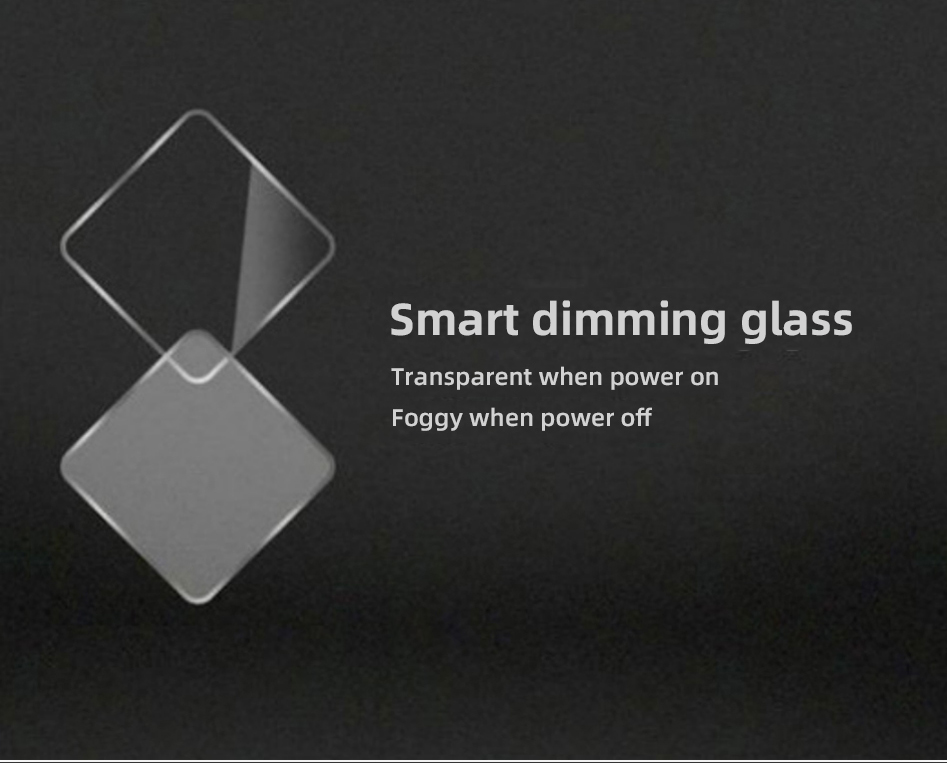

One-touch fogging: switch the transparent and opaque state of the sunroof with a switch to prevent outside prying, while maintaining natural lighting.
4. Intelligent control
Automatic mode: with light/temperature sensors, the transmittance is automatically adjusted according to the ambient light or temperature (such as the color-changing glass technology of Tesla Model 3).
Voice/APP control: after integrating the car system, it can be operated remotely by voice command or cell phone APP.
5. Safety enhancement
Anti-explosive properties: Some dimming films are laminated to adhere to fragments when broken, reducing the risk of splashing.
Impact resistance: Enhance the overall strength of the glass to withstand minor external impacts.
6. Additional features
Zone control: Advanced models support zone dimming (e.g. main driver's side dims individually).
Ambient light linkage: synchronized with the interior lighting system to create a personalized atmosphere.
Typical Application Scenarios
Driving in the hot sun: adjust to dark color mode to avoid sun exposure.
Night driving: keep transparent and enjoy the starry sky.
Business needs: fogging sunroof to protect rear privacy.


What You Will Learn

We will answer your required questions in the list below, also if you still don't understand, you can just leave your email address and we will give you a more precise customized solution.



Frequently Asked Question

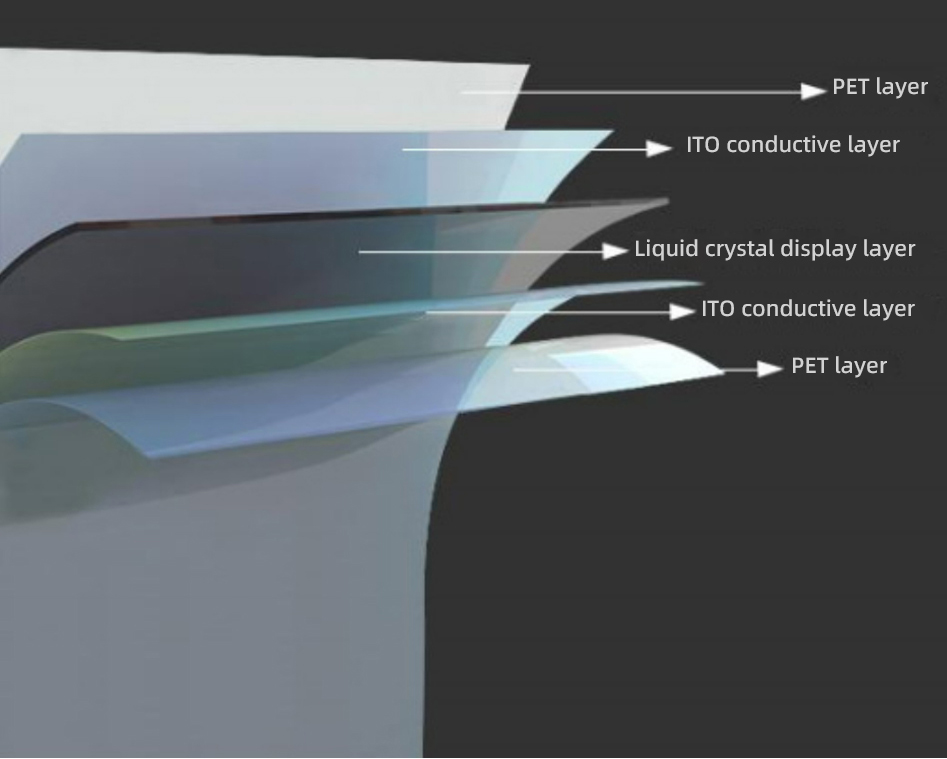

Dimming film (also known as intelligent dimming film or PDLC film) is a kind of high-tech film material, which is able to change the light transmittance and realize the switching between transparent and opaque state through electric control, temperature control or light control. The following are its main advantages:

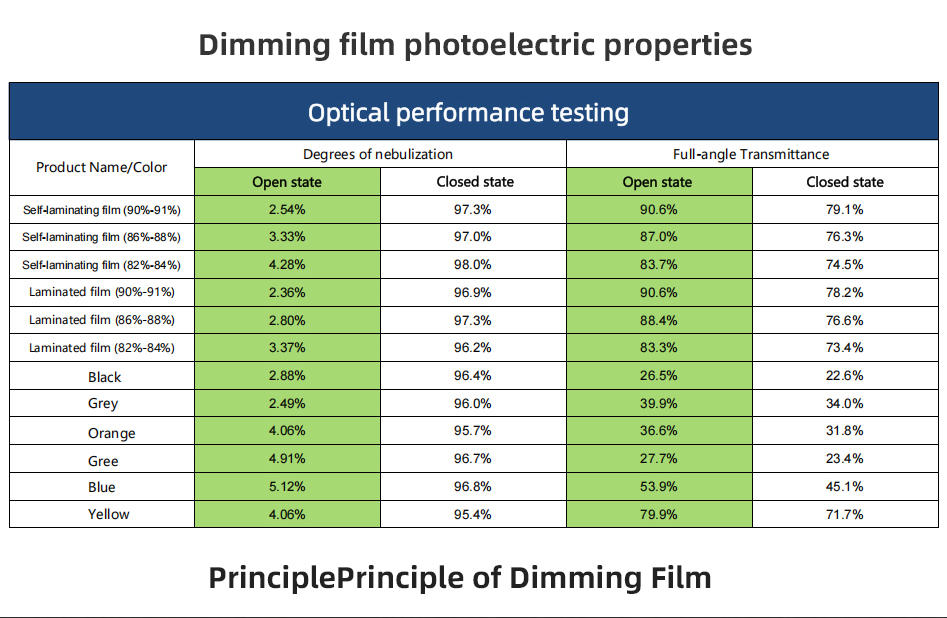

Instant switching: By current control (usually AC 12V-110V), it can quickly switch between transparent (light transmittance of about 70%~85%) and atomized (translucent or opaque) states, protecting privacy and eliminating the need for physical blocking.
No need for shades: replace traditional curtains or blinds to save space and enhance design simplicity.

Regulate light and heat: reduce direct sunlight, reduce indoor air-conditioning load, energy saving effect is remarkable (some cases can save energy consumption about 20%~30%).
UV Blocking: most dimming films block over 99% of UV rays, protecting indoor furniture and flooring from fading.

Architectural field: for smart windows, glass partitions, curtain walls, etc. Suitable for offices, hotels, hospitals and other places where dynamic privacy is required.
Automotive industry: used as sunroof or side window dimming layer, anti-glare and enhance privacy.
Commercial display: Combined with projection function, it can be used as transparent screen (e.g. window advertisement, exhibition interaction).

Explosion-proof and shatter-proof: The laminated design (e.g. composite with tempered glass) can enhance the strength of the glass and reduce the splash of debris when ruptured.
Long life: the life of high quality dimming film can reach 5~100,000 switching cycles with high stability.

Compatible with smart system: support mobile APP, voice control (such as Tmall Genie, HomeKit) or inductive control to integrate into smart home/office scenes. Touch control function: some high-end products support partition control to realize local transparency.

Light and transparent: the thickness is usually 0.1~0.5mm, which does not affect the original transparency of the glass, and can be customized in color or pattern.
Suitable for dust-free environment: medical, laboratory and other places with high requirements for cleanliness can reduce the problem of dust accumulation in the curtains.

Multiple lamination methods: can be attached directly to the existing glass (e.g. electrostatic lamination), or laminated in the glass (laminated process), lower cost when remodeling old buildings.
